Tisa Enterprises | Tisa Clamping Kit T4-TCK (70 pieces)

All products are housed in a wooden box

All products (Except Plain washer) are made of medium carbon steel, heat treated to 8.8 grade and chemically blackened

Type: T4-TCK
PRODUCT CODE	SUITABLE FOR T-SLOT X TAPPED HOLE	ENQUIRY
T4-TCK-108	10 x M8	Enquire
T4-TCK-1210	12 x M10	Enquire
T4-TCK-1412	14 x M12	Enquire
T4-TCK-1612	16 x M12	Enquire
T4-TCK-1816	18 x M16	Enquire
T4-TCK-2016	20 x M16	Enquire
T4-TCK-2220	22 x M20	Enquire

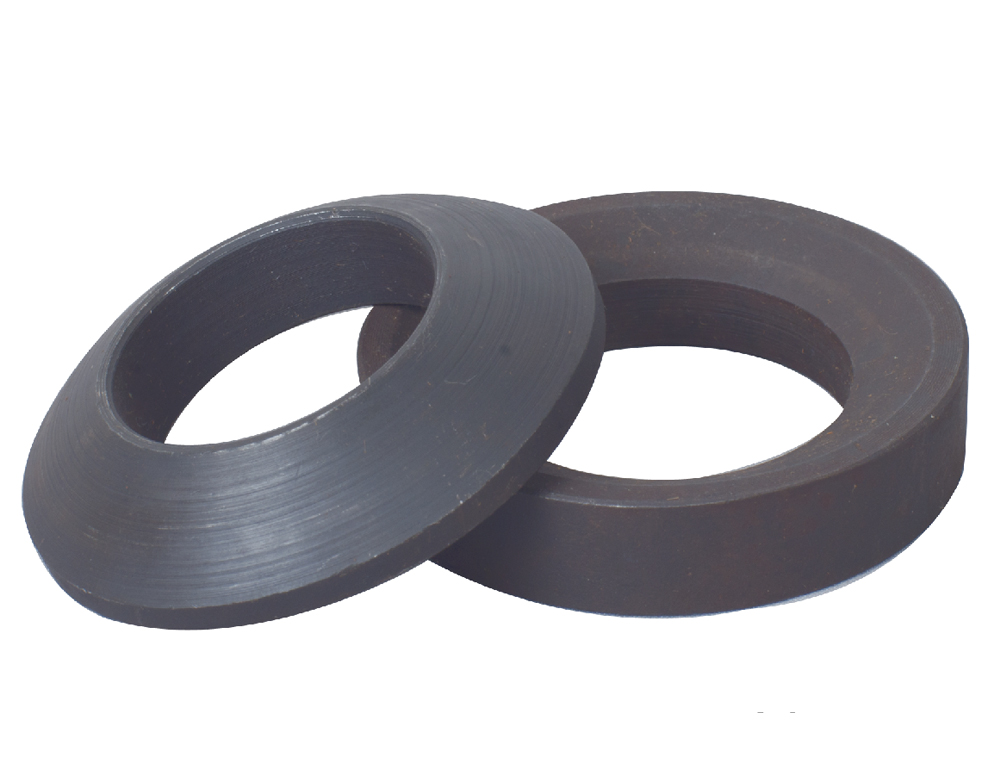

	SUITABLE FOR T-SLOT x TAPPED HOLE	CLAMPING STUD	T-NUT	HEX HI -NUT	EXTENSION NUT	PLAIN WASHER (THICK)	SPHERICAL WASHER WITH CONICAL SEAT	SERRATED STRAP CLAMP	UNIVERSAL SERRATED BLOCK

PRODUCT CODE		T2-CS	T2-TN	T2-HN	T2-EN	T3-PW-DIN	T2-SWCS	T1-SSC	T3-USB
QUANTITY		4 Nos of each size	6 Nos	6 Nos	6 Nos	6 Nos	4 Sets	4 Nos	2 Nos each
T4-TCK-108	10 x M8	832, 840, 850, 863, 880, 8100	108	812	824	M8	M8	960	001, 002, 003
T4-TCK-1210	12 x M10	1050, 1063, 1080, 10100, 10125, 10160	1210	1015	1030	M10	M10	1180	001, 002, 003
T4-TCK-1412	14 x M12	1263, 1280, 12100, 12125, 12160, 12200	1412	1218	1236	M12	M12	14100 – 2 Nos 14125 – 2 Nos	001, 002, 003
T4-TCK-1612	16 x M12	1263, 1280, 12100 12125, 12160, 12200	1612	1218	1236	M12	M12	14100 – 2 Nos 14125 – 2 Nos	001, 002, 003
T4-TCK-1816	18 x M16	1663, 1680, 16100 16125, 16160, 16200	1816	1624	1648	M16	M16	18125 – 2 Nos 18160 – 2 Nos	001, 002, 003
T4-TCK-2016	20 x M16	1663, 1680, 16100 16125, 16160, 16200	1816	1624	1648	M16	M16	18125 – 2 Nos 18160 – 2 Nos	001, 002, 003
T4-TCK-2220	22 x M20	2080, 20100, 20125 20160, 20200, 20250	2220	2030	2060	M20	M20	22160 – 2 Nos 22200 – 2 Nos	001, 002, 003
